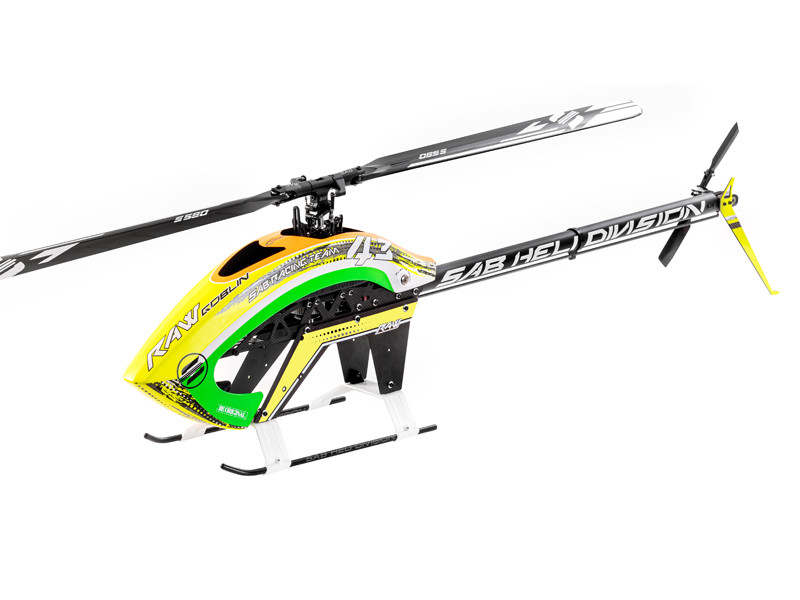

SAB Goblin Raw 580 Helicopter Kit (with blades)

The new RAW 580 use the same module from the Kraken 580.

- Incredible strong Power train enclosed in aluminum case,

- Ultra light 7075 aluminum alloy highly adjustable rotor head with super simple Tail group,

- Aluminum Boom 30mm Diameter

- Easy maintenance

- Main blades up to 600mm.

TECHNICAL SPECIFICATIONS:

- AIRFRAME weight: 1740gr ( with S580 blades, no battery, no electronics )

- Main blade length: 550mm to 600mm

- Tail blade length: 95 to 105 mm

- Main rotor diameter: 1290 mm (with 580 mm blades included)

- Tail rotor diameter: 260 mm (with 95 mm tail blades included)

- Cyclic Servos: mini cyclic servo (torque over 8 Kg-cm). Kit includes servo mounts for cyclic mini-servos. Full size servo mounts available separately.

- Tail Servo: Standard size 40mm (Full Size).

- Main Rotor ratio : 11.5 to 8.6 :1 ( 22T included: 9.4:1)

- Tail Rotor ratio : 5.3-4.9:1 ( 23T included: 4.9:1 )

- Typical motor : 4025 series, 6S 1000-1200 Kv(eg. Xnova 4025-1120KV), 12S 500-600 Kv(eg. Xnova 4025-560KV). Minimum motor shaft length is 26mm (We recommend using a 6mm diameter motor shaft) eg. Xnova 4025 motor with Shaft (B)

- Typical speed controller: 6S 120-140 A, 12S 100-130A

- Battery size: 6S 5000/6000 mAh, 12S 2600/3300 mAh.
