ISDT K4 - AC/DC Dual Channel Smart Charger (1S~8S) - AC 400W / DC 1200W

  • Image 1
  • Image 2
  • Image 3
  • Image 4
Price:
$224.98
SKU:
ISDT-K4
Brand:
Shipping:
Calculated at checkout
Quantity:


Product Description

ISDT K4 - AC/DC Dual Channel Smart Charger (1S~8S) -  AC 400W / DC 1200W(600W x2)

  • Blutooth for monitoring your charge from your apple or andriod deviceIndependent Dual Channels|Supports up to 8S lithium batteries|20A ×2|AC 400W total shared between both channels|DC 600W for each channelTotal max charging power, 1200 Watts!

  •  AC/DC Dual Modes Lipo Charger: Our lipo charger has AC 400W / DC 600Wx2 dual input model with independent dual channels, charging current: 30A X2, Max. Input current:60A. Advanced crafty cooling air duct for high efficiency heat dissipation. The K4 can acquire the latest firmware upgrades, ensuring the charger has optimized performance, and the latest firmware at all times.

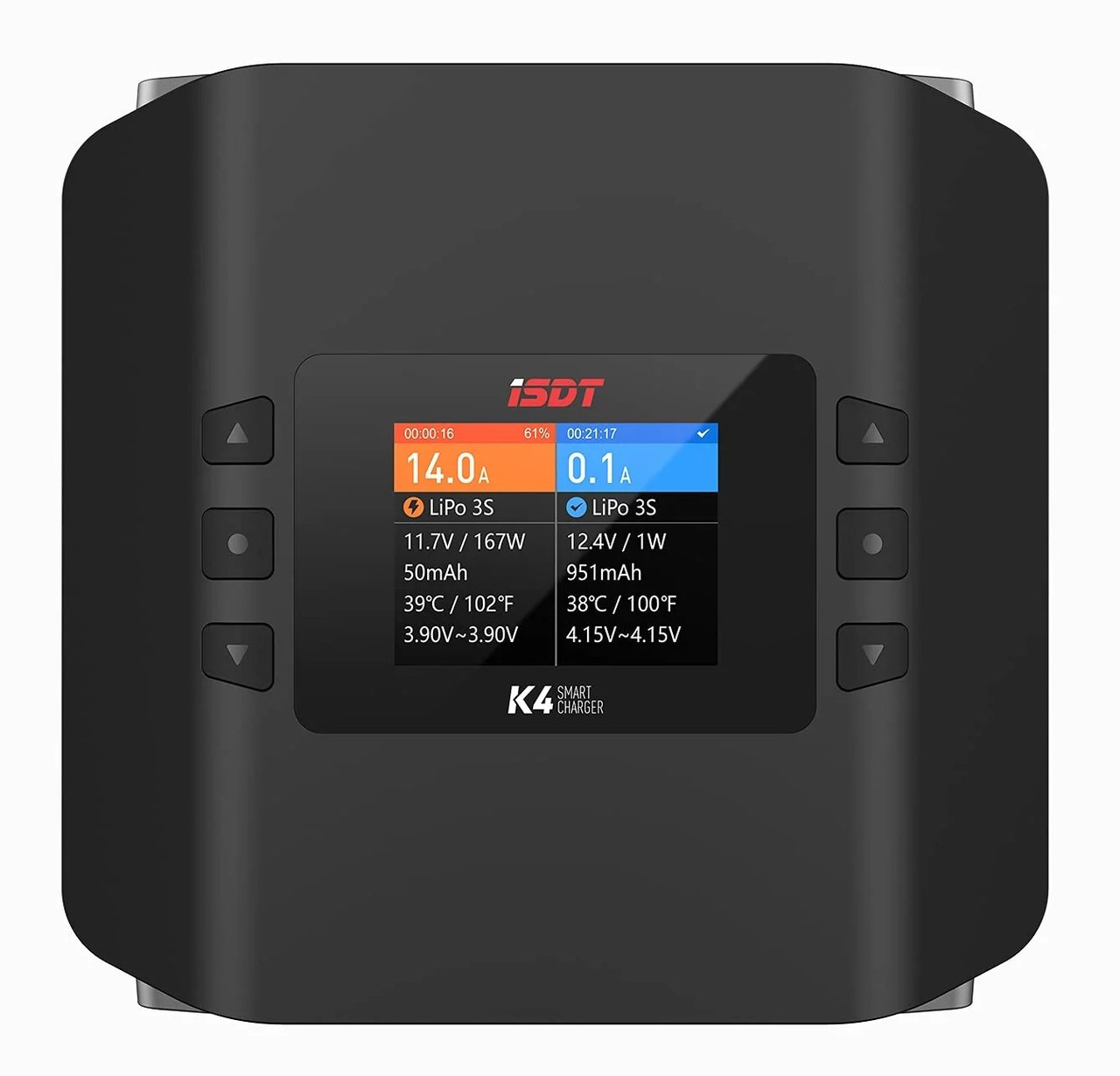

  • ISDT K4 Smart Display: Full color LCD, touch panel, it will show the whole charging process for batteries, with a large screen display that can show voltage, current, charging time, mode, battery type, internal resistance, battery capacity that has been charged, easy setup, and manual operation modes.
  • K4 Charger Multi-Functions: It supports BattAir BT connecting, and mobile operation. Comes with Li-ion and LiPO balancing, fast charging, data storage, cycle charging, and a discharging function. It will automatically stop charging after fully charged, then it can keep the battery topped off by enabling a smart trickle charge, super handy feature!



  • The ISDT K4 charger is fully compatible with BattAir’s innovative information interconnection technology,
    connects the battery through the XT60 interface, automatically recognizes the battery
    type, and automatically obtains battery information parameters. Automatically match
    safe working parameters,and optimize the charging algorithm.

Specs:

Model No: K4
Input voltage: AC 100~240V / DC 10~34V
Output voltage: DC 1~34V
Max. input current: DC 45A
Max. charging power: AC 400W total between the two channels / DC 600W ×2
Max. Discharging power: 30W ×2
Parallel charging power/current: 800W/35A
Parallel discharging power/current: 60W/3A
Supported battery types and cell count: LiFe,LiIon,LiPo 1~8S;LiHv,ULiHv 1~7S;
Pb 1~14S;NiMH/Cd 1~18S
Charging current: 0.2~20.0A ×2
Discharging current: 0.2~3.0A ×2
Balance current: 1.5A/Cell Max
Abnormal voltage alarm: Support
Incorrect cell count setting alarm: Support
Support Working temperature: 0~40℃
Storage temperature: -20~60℃
Dimension: 176×183×57mm
Weight: About 1230g

Included:

1X ISDT K4 Charger
