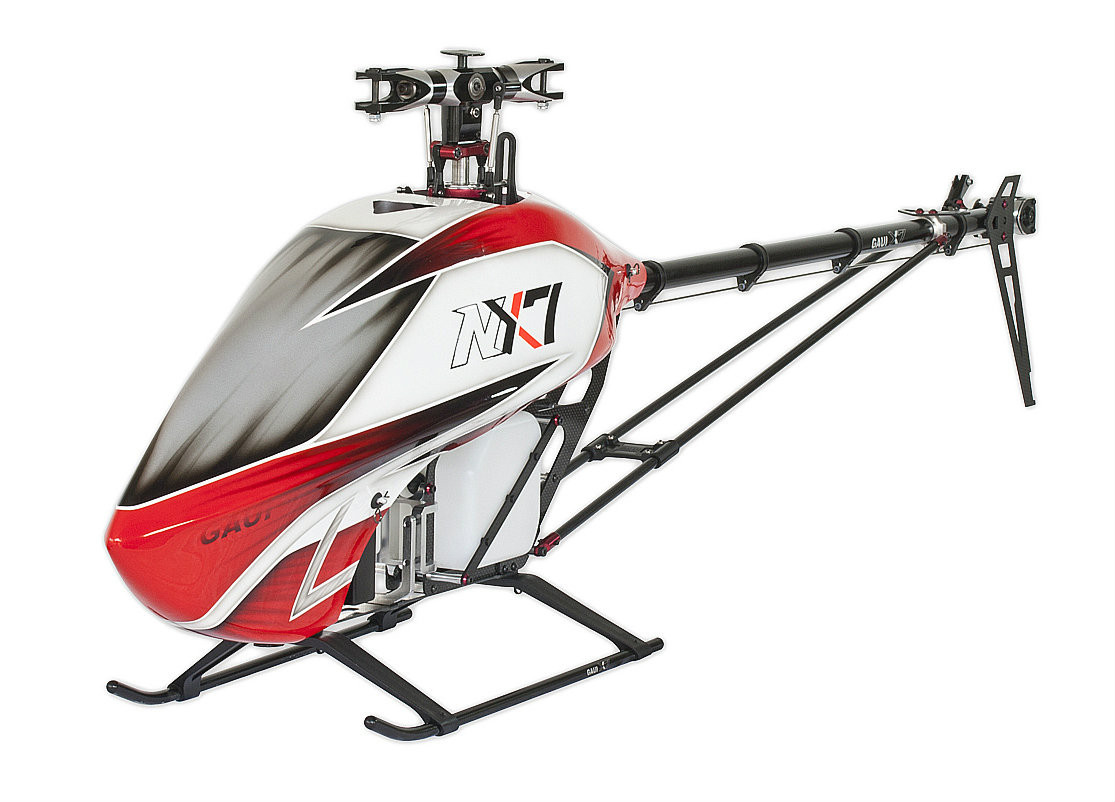

NX7 Formula Helicopter Kit (No Blades)

Tareq having a blast with his NX7!

*NX7 Formula Rotor head contains the central pivot bearing support for the Rotor Head Spindle Shaft which offers a crisp, yet precise feeling of control.

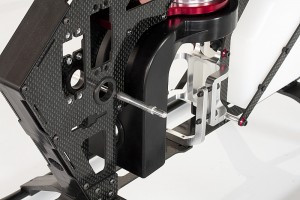

*The NX7 utilizes high quality 3K Carbon Fiber frames and implements a narrow body design for maximum strength.

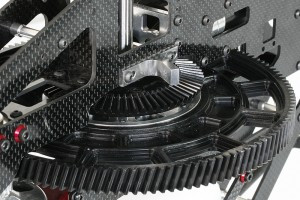

*131 tooth Mod1.25 Main Gear (same large gear mod as the X7)

*Fuel tank placement is exactly in the center of the main shaft. This allows the model’s Center of Gravity to remain unchanged through the entire flight.



Specifications:

Overall Length (with Canopy): 1385 mm
Main Rotation Diameter: 1560~1620 mm
Main blade length: 690~720 mm
Overall Height: 415 mm
Overall Width: 200 mm
Tail Blade Length: 105 mm
Tail Rotation Diameter: 290 mm
Flight duration: 5~6 minutes
Tank capacity:660cc 22oz
Weight:4400g

Content:

NX7 Formula Basic Kit x1

Drive Gear Ratio

16T: 8.18:1:4.71

Required for operation

Transmitter(7-channel or more, helicopter system)
Receiver(7-channel or more)
High speed/torque Servo x5
Engine starter x 1
Digital pitch gauge x 1
Fuel pump x 1
Engine fuel x 1
Muffler x 1
Engine x 1
CF main blades x1
CF Tail Rotor Blade x1
Flybarless System x1
Governor Sensor x 1

Tools and Equipment for Assembly

*1.5 mm Hexagon Screw Driver
*2 mm Hexagon Screw Driver
*2.5 mm Hexagon Screw Driver
*3 mm Hexagon Screw Driver
* Lubricant / one-way bearing grease
* Spring calipers, Needle-nosed pliers
* General thread lock
